Bode & Nyquist

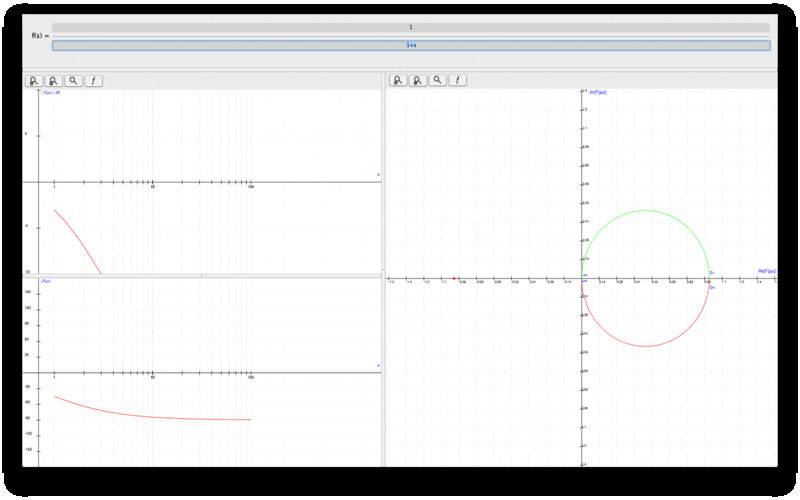

This application allows you to plot together both the Bode and Nyquist diagram of a transfer function. Through a dedicated function you can set the maximum frequency of the Nyquist diagram and the frequency range for the Bode diagrams of the module and phase. There is also a complete online help.
