AENEAS Enhanced Numeric Electro-Acoustic Simulator makes it easy to simulate loudspeaker enclosure designs. It accepts Thiele-Small parameters for a driver and can simulate the following enclosures designs:
- inifinite baffle
- closed/sealed
- vented
- bandpass 4th order
- bandpass 6th order
- closed 3rd order
- Transmission Line

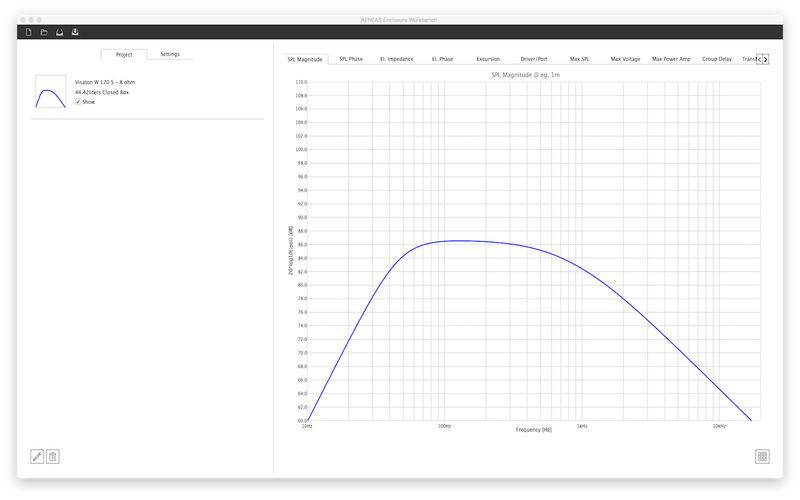

For each design several output graphs are shown:
- SPL magnitude & Phase
- Impedance seen by the amplifier
- Excursion of driver
- SPL of driver or port
- Max. SPL
- Max.Input Voltage for linear excursion
- Max. input power for linear excursion
- Group Delay
- Transfer function of Enclosure
Measured frequency responses can be imported and included into the simulation.
AENEAS can simulate multiple driver/enclosure combinations at the same time.
Designs can be stored and loaded.
